Custom Worm Gear Set manufacturing starts with confirmed technical requirements.
Review the gear pair, assembly conditions, drawing requirements, specification checks, and inspection points before requesting a quotation.
A worm gear set combines a screw-like worm with a mating wheel to transmit motion between non-parallel, non-intersecting shafts. ZhongYi reviews worm shafts, worm wheels, duplex worms, and drawing-defined matched sets from buyer drawings or samples. Ratio, number of starts, module or DP system, pressure angle, lead angle, hand, center distance, wheel tooth count, face width, shaft and bore features, material pairing, heat treatment, backlash, lubrication, load, speed, and duty cycle all affect the design. Efficiency, temperature rise, wear, and possible self-locking behaviour depend on the complete mechanism and operating conditions; they are not presented as guaranteed properties without the buyer design and agreed testing.
Tooth AccuracyDIN 5-7 / AGMA 11-13
Tooth FinishingCNC Ground (Ra β€0.4Β΅m)
Hardness GradeCarburized 58-62 HRC
Custom Worm Gear SetFactory Genuine Spec
Selection guidance
How to specify a custom worm gear set for quotation.
Use application and mating-component data to confirm geometry, materials, mounting details, and the acceptance plan.
Start with ratio, center distance, shaft orientation, input speed, output torque, duty cycle, and allowable temperature. Confirm number of worm starts, hand, wheel tooth count, module or DP system, pressure angle, lead angle, and backlash. Material pairing and lubricant selection influence friction, wear, and heat generation. The RFQ should identify bearing support, shaft and bore datums, lubrication method, ambient conditions, expected starts and stops, quantity, and required inspection. Self-locking must be evaluated for the actual lead angle, friction conditions, and safety design rather than assumed from the term βworm gear.β
Technical specifications
Core technical parameters for engineering and procurement review.
Product type
Custom worm shaft, worm wheel, or matched worm gear set by drawing
Shaft arrangement
Crossed-axis drive with center distance and orientation defined by the assembly
Tooth data
Module or DP, starts, hand, lead angle, pressure angle, wheel tooth count, and backlash
Mounting features
Integral shaft, bearing seats, threads, keyways, finished wheel bore, hub, or flange
Material pair
Steel or specified worm with bronze, steel, polymer, or drawing-specified wheel material
Order confirmation
Load, speed, duty, lubrication, temperature, quantity, and inspection requirements per RFQ
Factory Production Showcase
Custom Worm Gear Set Real Manufactured Samples & Variations
Authentic studio photography of custom manufactured parts, gear sets, and components produced to OEM customer specifications.

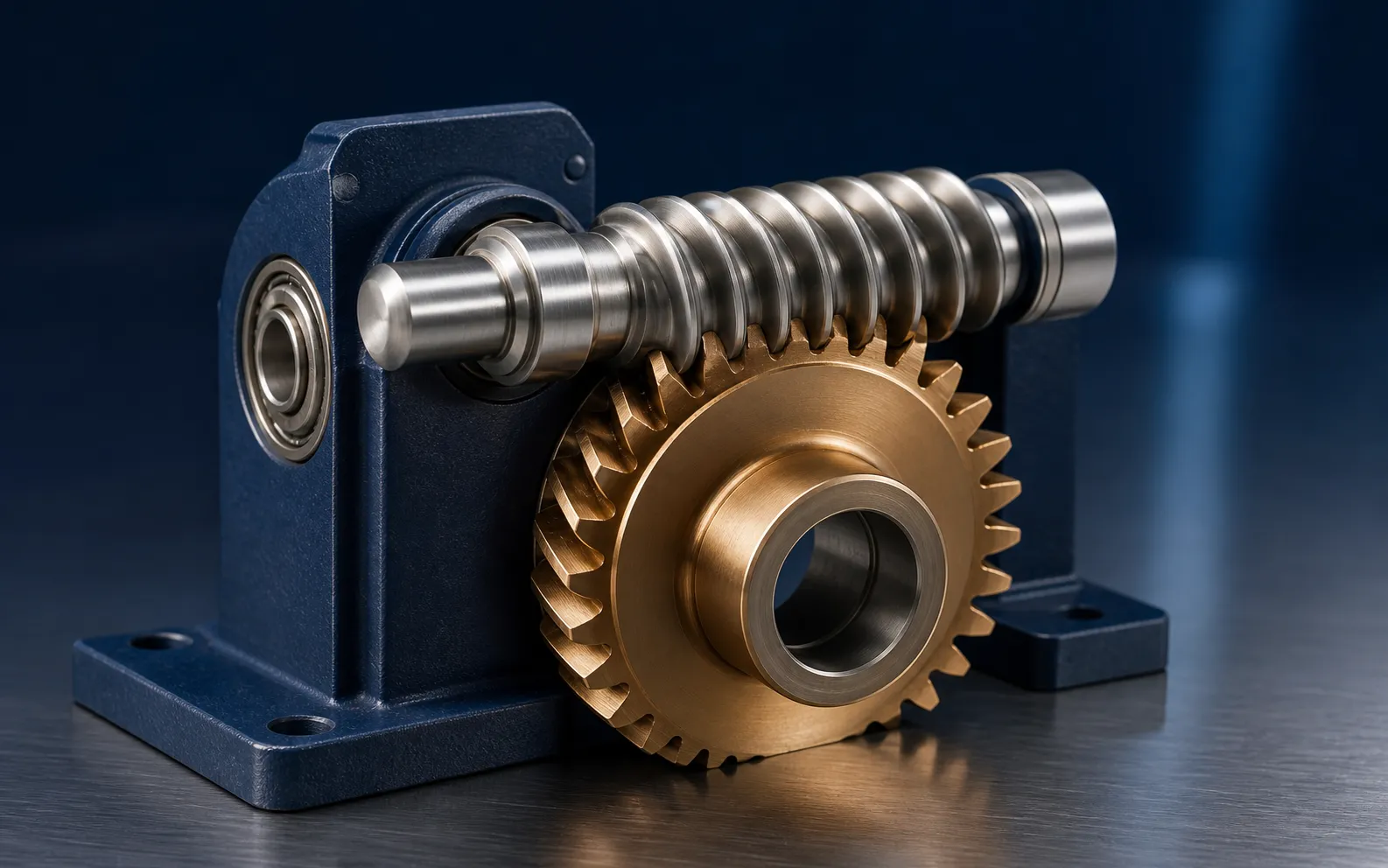

Precision phosphor bronze worm wheel with custom steel worm shaft
Dual-lead bronze worm gear set for anti-backlash positioning
High-ratio reduction worm wheel with finished keyway bore
Right-hand case-hardened ground steel worm shaft
Bronze rim cast-iron hub composite heavy worm wheel
Multi-start high-efficiency ground worm and wheel pair
Custom options
Manufacturing details that can be reviewed before quotation.
Single- or multi-start worm geometry by approved drawing
Integral worm shaft with bearing seats, shoulders, threads, or splines
Finished wheel bore, keyway, hub, flange, or assembly features
Specified material pair, heat treatment, and tooth finishing route
Matched set review for OEM production or documented replacement
Quality control
Inspection points tied to the approved technical file.
Worm and wheel drawings, center distance, hand, and pair identity reviewed together
Shaft datums, bearing seats, wheel bore, runout, and tooth features checked by drawing
Hardness, backlash, center-distance mesh, or contact marking performed when specified
Material pair, heat treatment, lubrication assumptions, and inspection record agreed before production
All products can be custom manufactured from 2D/3D CAD drawings or physical samples.
Quality Control & Inspection Matrix
Engineering Evidence & 100% Inspection for Custom Worm Gear Set.
Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).
Component-Specific Quality Focus:
Worm-set inspection should reflect the approved assembly requirements. Checks may include shaft and bore dimensions, runout, lead- or tooth-related measurements, hardness, center-distance mesh, backlash, and contact marking when specified. Thermal capacity and efficiency require operating data or testing beyond general dimensional inspection. Buyers should therefore provide the load spectrum, speeds, duty cycle, lubricant, temperature limits, and acceptance method needed for the application.
Coordinate Metrology
Zeiss / Hexagon 3D CMM
Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to Β±0.002 mm.
Tooth Geometry Analysis
Klingelnberg CNC Gear Analyzer
Inspects involute tooth profile error (fΞ±), lead crowning (fΞ²), pitch cumulative error (Fp), and radial runout (Fr).
Hardness & Case Depth
Digital Micro-Vickers & Rockwell Testers
Verifies surface hardness (58β62 HRC), core toughness, and effective carburized / nitrided case depth gradient.
Chemical Metallurgy
Direct-Reading Optical Spectrometer
100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).
Inspection Deliverables with Every Shipment
Complete Batch Traceability & Certified Test Reports
EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
Zeiss 3D CMM Full Dimensional Inspection Sheet
Klingelnberg Tooth Profile & Lead Crowning Graph Report
Effective Carburized Case Depth & Hardness Curve Data
We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.
ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards
Applications
Custom Worm Gear Set operating environments.
Confirm load, speed, duty cycle, environment, lubrication, and assembly constraints before selecting the final material and manufacturing route.
Industrial reducers, actuators, indexers, and adjustment mechanisms
Conveying, lifting, valve, gate, and positioning equipment
Agricultural and construction machinery drive components
Replacement worm sets with center-distance and housing data
Application Markets
Where Custom Worm Gear Set Are Engineered & Deployed
Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:
High-torque, impact-resistant gears, girth rings, and planetary drive sets engineered for excavators, cranes, drilling rigs, and heavy mining crushers.
Common questions before ordering custom worm gear set products.
Critical specifications are confirmed against final drawings before production.
What information is needed for a custom worm gear set quote?βΌ
Provide worm and wheel drawings, ratio, number of starts, hand, module or DP, pressure angle, lead angle, center distance, wheel tooth count, shaft and bore features, material pair, heat treatment, backlash, quantity, load, speeds, duty cycle, and lubrication.
Is every worm gear drive self-locking?βΌ
No. Backdrivability depends on lead angle, friction, lubrication, wear, vibration, and load. Safety-critical holding must use an engineering assessment and a suitable brake or locking method where required.
Why are the worm and wheel materials reviewed as a pair?βΌ
The mating materials, surface condition, lubrication, load, and sliding speed affect friction, wear, heat, and service life. Specify the existing design or operating requirements instead of choosing each component independently.
