custom spur gear manufacturer

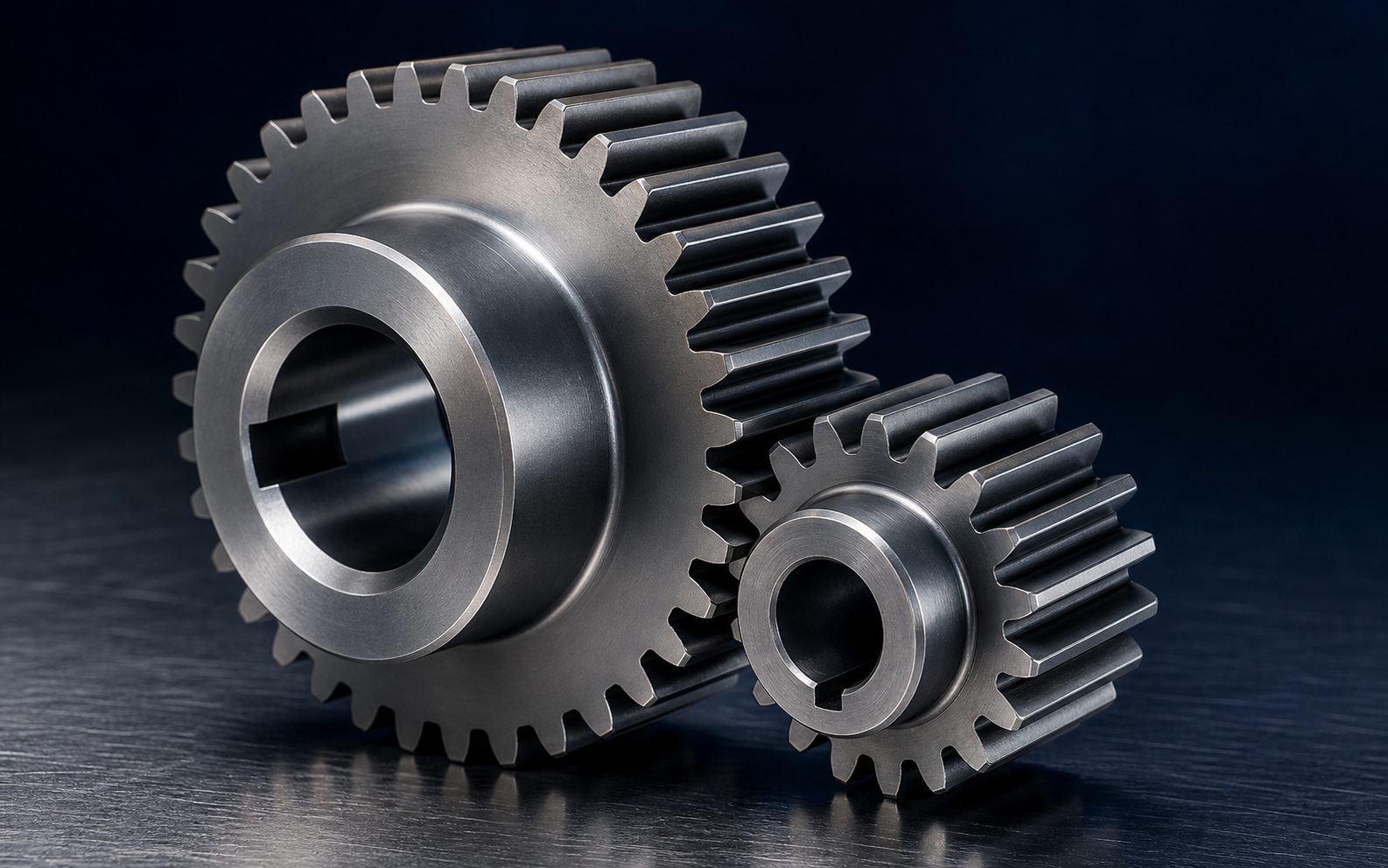

Custom Spur Gear
Drawing- and sample-based spur gears for OEM machinery, replacement programs, reducers, and parallel-shaft transmission assemblies.
Customization
100% to CAD / Sample
Precision Grade
DIN 4-7 / AGMA 11-13
DFM Analysis
< 24 Hours Turnaround
Quality System
ISO 9001:2015
Product overview
Custom Spur Gear manufacturing starts with confirmed technical requirements.
Review the gear pair, assembly conditions, drawing requirements, specification checks, and inspection points before requesting a quotation.
A custom spur gear must match both the mating gear and the surrounding shaft and housing. ZhongYi reviews buyer drawings, samples, or confirmed technical specifications for straight-tooth external gears used on parallel shafts. The quotation review can cover module or diametral pitch, pressure angle, tooth count, face width, bore, hub, keyway, material, heat treatment, tooth finishing, backlash, and inspection requirements. For replacement gears, a worn sample is useful but may not preserve the original tooth thickness or profile. Mating-gear data, center distance, shaft details, and assembly photographs help engineers distinguish the intended geometry from wear. Exact tolerances, accuracy grades, hardness, and process routes are confirmed against the approved drawing rather than treated as universal product claims.
Tooth Accuracy DIN 5-7 / AGMA 11-13
Tooth Finishing CNC Ground (Ra โค0.4ยตm)
Hardness Grade Carburized 58-62 HRC
Custom Spur Gear Factory Genuine Spec
Selection guidance
How to specify a custom spur gear for quotation.
Use application and mating-component data to confirm geometry, materials, mounting details, and the acceptance plan.
Begin with the gear pair, not the outside diameter. Confirm module or DP, pressure angle, tooth count, center distance, mating-gear data, and required backlash. Then define how the gear locates on the shaft: bore fit, keyway, spline, interference fit, locking element, or integral pinion shaft. Load, speed, duty cycle, lubrication, temperature, contamination, noise expectations, and service life influence the material, heat treatment, and tooth-finishing route. Include the drawing revision, quantity, acceptance criteria, and any required inspection report in the RFQ.
Technical specifications
Core technical parameters for engineering and procurement review.
| Product type | External custom spur gear or spur pinion made to approved technical data |
|---|---|
| Manufacturing basis | Buyer drawing, sample, mating component, or confirmed specification |
| Materials | Carbon steel, alloy steel, stainless steel, engineering plastic, or drawing-specified material |
| Common features | Finished or pilot bore, keyway, hub, set-screw feature, chamfer, and surface treatment by drawing |
| Tooth data | Module or DP, pressure angle, tooth count, profile data, face width, and mating geometry |
| Order confirmation | Quantity, tolerance, hardness, inspection record, packing, and application conditions reviewed per RFQ |
Custom options
Manufacturing details that can be reviewed before quotation.
- Metric module or inch diametral-pitch geometry
- Pilot bore, finished bore, keyway, spline, or integral shaft design
- Hubbed, hubless, webbed, or lightweight blank form by drawing
- Heat treatment and post-treatment finishing where specified
- Prototype review, replacement part, or repeat OEM production
Quality control
Inspection points tied to the approved technical file.
- Drawing revision and datum review before quotation
- Blank, bore, keyway, face, and runout checks against the approved drawing
- Tooth thickness, pitch-related, hardness, or mating checks when specified
- Material, heat-treatment, and inspection documentation agreed before production
All products can be custom manufactured from 2D/3D CAD drawings or physical samples.
Quality Control & Inspection Matrix
Engineering Evidence & 100% Inspection for Custom Spur Gear.
Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).
Component-Specific Quality Focus:
Inspection should follow the buyer-approved technical file. Depending on the drawing and purchase requirement, checkpoints may include blank dimensions, bore and face runout, tooth thickness, pitch-related characteristics, hardness, surface condition, and fit with the mating gear. ZhongYi does not assign an unsupported accuracy grade or performance rating. Buyers should identify critical characteristics and required records before production so quotation, manufacturing, and acceptance use the same criteria.
Zeiss / Hexagon 3D CMM
Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to ยฑ0.002 mm.
Klingelnberg CNC Gear Analyzer
Inspects involute tooth profile error (fฮฑ), lead crowning (fฮฒ), pitch cumulative error (Fp), and radial runout (Fr).
Digital Micro-Vickers & Rockwell Testers
Verifies surface hardness (58โ62 HRC), core toughness, and effective carburized / nitrided case depth gradient.
Direct-Reading Optical Spectrometer
100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).
Inspection Deliverables with Every Shipment
Complete Batch Traceability & Certified Test Reports
- EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
- Zeiss 3D CMM Full Dimensional Inspection Sheet
- Klingelnberg Tooth Profile & Lead Crowning Graph Report
- Effective Carburized Case Depth & Hardness Curve Data
- 100% Pre-Shipment Visual, Thread & Anti-Rust Quality Verification
Our Factory Quality Commitment:
We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.
ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards
Applications
Custom Spur Gear operating environments.
Confirm load, speed, duty cycle, environment, lubrication, and assembly constraints before selecting the final material and manufacturing route.
- Industrial reducers, pumps, conveyors, and packaging machinery
- Agricultural and construction equipment transmission components
- Automotive, motorcycle, and mobile-equipment mechanisms
- Maintenance replacements for documented parallel-shaft assemblies
Application Markets
View All 5 Industry Hubs โ
Where Custom Spur Gear Are Engineered & Deployed
Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:
๐ค Sub-Arcminute Motion & Dynamic Positioning
Automation & Robotics
Low-backlash, ultra-precise fine-pitch gears, ground helical racks, and planetary gearheads for robotics, AGV wheel drives, and high-speed motion axes.
๐พ Rugged Heavy-Torque Transmission
Agriculture & Farm Equipment
High-torque bevel gears, spur gears, and splined drive shafts for tractors, harvesters, rotary tillers, and agricultural PTO gearboxes.
Technical FAQ
Common questions before ordering custom spur gear products.
Critical specifications are confirmed against final drawings before production.
What information is needed for a custom spur gear quote? โผ
Provide a 2D or 3D drawing when available, or a sample with module or DP, pressure angle, tooth count, face width, bore, hub, keyway, material, heat treatment, quantity, and operating conditions. Mating-gear and center-distance data reduce replacement risk.
Can a spur gear be manufactured from a worn sample? โผ
A sample can support feasibility review, but wear may hide the original profile and tooth thickness. Supplying the mating gear, shaft dimensions, housing center distance, and any historical drawing helps reconstruct the intended component.
Should the teeth be cut, hardened, or ground? โผ
The appropriate route depends on load, speed, duty cycle, wear target, noise expectation, and drawing tolerance. Heat treatment can change dimensions, so surfaces requiring finishing after treatment should be identified on the drawing.
24-Hour Engineering Quote & DFM Review
Upload Your Drawings for Custom Spur Gear Manufacturing
Send your 2D blueprints or 3D CAD models. Our senior gear engineering team will review tooth geometry, module/pitch, materials, heat treatment feasibility, and provide transparent factory pricing within 24 hours.
Supported CAD Blueprint & Drawing Formats:
STEP (.step / .stp) AutoCAD (.dwg / .dxf) IGES (.igs) SolidWorks / 3D CAD PDF Technical Blueprints Worn Physical Samples
Mutual NDA Protection
We sign strict Non-Disclosure Agreements to safeguard proprietary designs.
< 24h DFM Feedback
Rapid manufacturability review, tolerance checks, and unit quotation.
Direct Factory Engineering
Direct technical communication with senior master gear artisans.
