Custom Spiral Bevel Gear Set manufacturing starts with confirmed technical requirements.
Review the gear pair, assembly conditions, drawing requirements, specification checks, and inspection points before requesting a quotation.

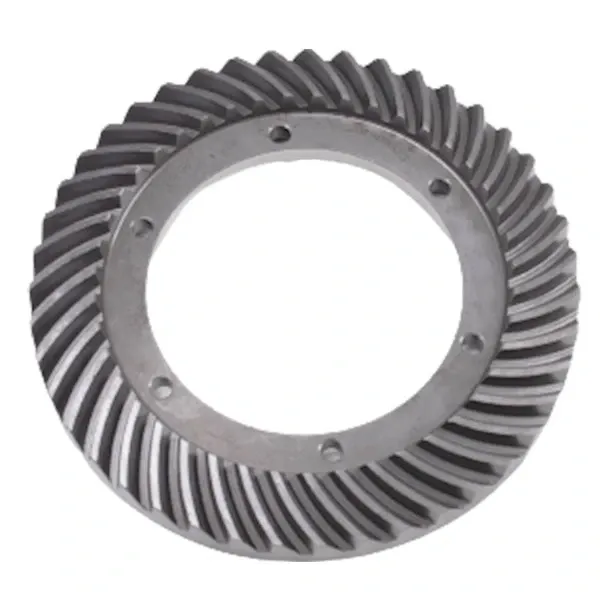

Custom spiral bevel gears feature curved, overlapping tooth lines that contact progressively along the tooth flank. This tooth geometry provides superior tooth contact ratio, high torque transmission density, and quiet operation at high rotational speeds compared to straight bevel gears. ZhongYi manufactures custom spiral bevel gear sets (Gleason or Klingelnberg tooth systems) from customer engineering drawings or master sample sets. Quotation and process engineering cover reduction ratio (1:1 up to 1:8), shaft angle (standard 90° or custom angles), spiral angle (typically 35°), pinion hand (RH/LH) paired with gear hand (LH/RH), mounting distances, tooth grinding or lapping, carburizing heat treatment (HRC 58-62), and contact pattern testing under nominal mounting distances.
Tooth AccuracyDIN 5-7 / AGMA 11-13
Tooth FinishingCNC Ground (Ra ≤0.4µm)
Hardness GradeCarburized 58-62 HRC
Custom Spiral Bevel Gear SetFactory Genuine Spec
Selection guidance
How to specify a custom spiral bevel gear set for quotation.
Use application and mating-component data to confirm geometry, materials, mounting details, and the acceptance plan.
Specify both the gear and pinion simultaneously. Document shaft rotation direction, transmitted torque, input speed, reduction ratio, shaft angle, spiral angle, and hand of helix. Because spiral teeth produce substantial axial thrust and radial separating forces, confirm that the gearbox bearings (such as tapered roller bearings) and housing rigidity are designed to maintain exact mounting distances under full operating load. State required tooth contact pattern position (toe, center, or biased for deflection compensation) and backlash range in the RFQ.
Technical specifications
Core technical parameters for engineering and procurement review.
Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).
Component-Specific Quality Focus:
Spiral bevel gear pairs are manufactured, tested, lapped, and serialized as matched pairs. During testing, contact pattern position, contact area percentage, and backlash are verified at specified mounting distances. Paired gears must be installed and adjusted according to the etched mounting distance dimensions.
Coordinate Metrology
Zeiss / Hexagon 3D CMM
Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to ±0.002 mm.
Tooth Geometry Analysis
Klingelnberg CNC Gear Analyzer
Inspects involute tooth profile error (fα), lead crowning (fβ), pitch cumulative error (Fp), and radial runout (Fr).
Hardness & Case Depth
Digital Micro-Vickers & Rockwell Testers
Verifies surface hardness (58–62 HRC), core toughness, and effective carburized / nitrided case depth gradient.
Chemical Metallurgy
Direct-Reading Optical Spectrometer
100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).
Inspection Deliverables with Every Shipment
Complete Batch Traceability & Certified Test Reports
EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
Zeiss 3D CMM Full Dimensional Inspection Sheet
Klingelnberg Tooth Profile & Lead Crowning Graph Report
Effective Carburized Case Depth & Hardness Curve Data
We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.
ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards
Applications
Custom Spiral Bevel Gear Set operating environments.
Confirm load, speed, duty cycle, environment, lubrication, and assembly constraints before selecting the final material and manufacturing route.
Agricultural machinery power take-off (PTO) gearboxes, rotary cutters, and balers
Automotive, commercial truck, and construction machinery drive axles and differentials
Industrial heavy-duty right-angle speed reducers and marine thrusters
Mining conveyors, crushing equipment, and drilling rig drive units
Application Markets
Where Custom Spiral Bevel Gear Set Are Engineered & Deployed
Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:
High-torque, impact-resistant gears, girth rings, and planetary drive sets engineered for excavators, cranes, drilling rigs, and heavy mining crushers.
Common questions before ordering custom spiral bevel gear set products.
Critical specifications are confirmed against final drawings before production.
Why must spiral bevel gears always be replaced in matched pairs?▼
Spiral bevel gears are cut and lapped or ground as a matched pair to achieve harmonious tooth meshing and controlled contact patterns. Replacing only one member will result in severe stress concentration, tooth noise, rapid wear, and potential tooth breakage.
How do I choose between lapped and ground spiral bevel gears?▼
Lapped gears are cost-effective and proven for agricultural machinery, general gearboxes, and off-highway axles. Ground spiral bevel gears provide higher tooth surface precision, tighter pitch accuracy, lower noise, and higher load ratings for high-speed industrial or EV reducers.
What determines whether a spiral pinion should be right-hand or left-hand?▼
The choice depends on the direction of shaft rotation and whether the resulting axial thrust force should push the pinion into or pull it away from the cone center. Selecting the hand that pulls the pinion away helps prevent gear binding under bearing deflection.
24-Hour Engineering Quote & DFM Review
Upload Your Drawings for Custom Spiral Bevel Gear Set Manufacturing
Send your 2D blueprints or 3D CAD models. Our senior gear engineering team will review tooth geometry, module/pitch, materials, heat treatment feasibility, and provide transparent factory pricing within 24 hours.
Supported CAD Blueprint & Drawing Formats:
STEP (.step / .stp) AutoCAD (.dwg / .dxf) IGES (.igs) SolidWorks / 3D CAD PDF Technical Blueprints Worn Physical Samples
Mutual NDA Protection
We sign strict Non-Disclosure Agreements to safeguard proprietary designs.
< 24h DFM Feedback
Rapid manufacturability review, tolerance checks, and unit quotation.
Direct Factory Engineering
Direct technical communication with senior master gear artisans.
