Custom Gearbox Components manufacturing starts with confirmed technical requirements.
Review the gear pair, assembly conditions, drawing requirements, specification checks, and inspection points before requesting a quotation.
Internal gearbox components must align with the entire transmission train, bearing arrangement, and housing geometry. ZhongYi manufactures custom gearbox components from buyer drawings, samples, or confirmed technical files. The engineering review covers reduction ratios, center distances, shaft layouts, mating tooth forms, bearing journals, splines, keyways, materials, heat treatment, case depth, backlash, lubrication, and inspection criteria. For maintenance or replacement work, providing the mating parts, housing data, installed orientation, and failure history is recommended so that replacement components resolve rather than duplicate historical operating issues. Tolerances, cleanliness, and inspection records are confirmed against approved drawings for each order.
Tooth AccuracyDIN 5-7 / AGMA 11-13
Tooth FinishingCNC Ground (Ra ≤0.4µm)
Hardness GradeCarburized 58-62 HRC
Custom Gearbox ComponentsFactory Genuine Spec
Selection guidance
How to specify a custom gearbox components for quotation.
Use application and mating-component data to confirm geometry, materials, mounting details, and the acceptance plan.
Provide the gearbox assembly drawing or complete interface data whenever possible. Confirm input speed, output torque, reduction ratio, center distances, bearing fits, housing bores, seal locations, and lubrication type. For replacement parts, identify the observed failure mode—such as tooth pitting, root cracking, shaft bending, or bearing journal wear—to ensure the replacement material, heat treatment, and tolerances are appropriate for the duty. Include drawing revision, required inspection documents, and order quantities in the RFQ.
Technical specifications
Core technical parameters for engineering and procurement review.
Product type
Custom gears, shafts, pinions, bevel pairs, or worm sets for gearboxes
Manufacturing basis
Buyer drawing, sample, mating parts, or gearbox interface specification
Common components
Spur gears, helical gears, integral pinion shafts, bevel gear sets, and worm gearing
Shaft features
Precision bearing seats, splines, threads, shoulders, keyways, and seal journals
Materials
Carbon steel, alloy steel, carburizing alloys, bronze, or specified materials
Order confirmation
Torque, speed, ratio, lubrication, backlash, quantity, and inspection records per RFQ
Factory Production Showcase
Custom Gearbox Components Real Manufactured Samples & Variations
Authentic studio photography of custom manufactured parts, gear sets, and components produced to OEM customer specifications.
Heavy-duty industrial speed reducer helical gear
Multi-stage reduction gear with internal splined bore
Planetary reduction sun gear and planet pinion set

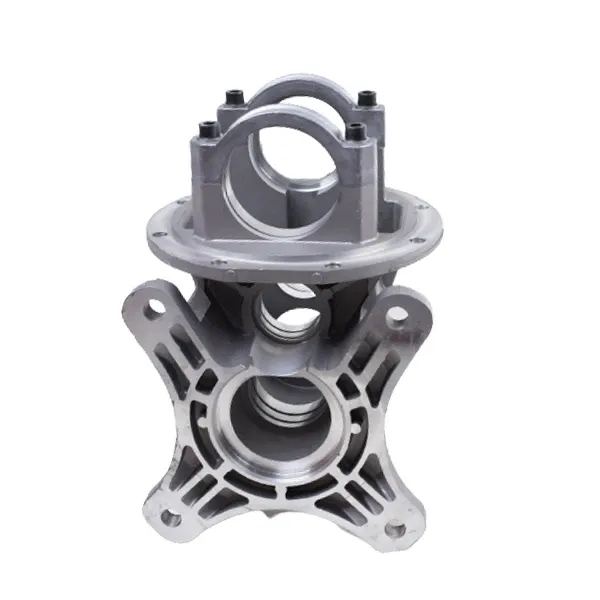

Precision industrial reduction gearbox housing and assembly
High-torque speed reducer assembly with integrated gear train
Custom options
Manufacturing details that can be reviewed before quotation.
Parallel-shaft, right-angle, or multi-stage gearbox component sets
Cut, hardened, or ground gear teeth based on drawing requirements
Integral pinion shafts with finished bearing seats and spline profiles
Matched bevel sets or worm pairs identified and packed together
Prototype batches, replacement components, or continuous OEM supply
Quality control
Inspection points tied to the approved technical file.
Complete drawing revision, datum, and mating pair check before quotation
Blank dimensions, journal fits, straightness, and runout verified against the approved file
Tooth thickness, pitch-related characteristics, hardness, and case depth inspected when specified
Matched component identification and corrosion-preventative packing for shipment
All products can be custom manufactured from 2D/3D CAD drawings or physical samples.
Quality Control & Inspection Matrix
Engineering Evidence & 100% Inspection for Custom Gearbox Components.
Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).
Component-Specific Quality Focus:
Gearbox component quality is verified against approved component drawings and specified assembly interfaces. Inspection checkpoints may include blank dimensions, journal tolerances, shaft straightness, tooth geometry, surface finish, hardness, case depth, and pair contact or backlash when specified. ZhongYi focuses on component-level manufacturing to print and does not claim complete gearbox ratings, efficiency, or service life without agreed assembly-level design and validation testing.
Coordinate Metrology
Zeiss / Hexagon 3D CMM
Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to ±0.002 mm.
Tooth Geometry Analysis
Klingelnberg CNC Gear Analyzer
Inspects involute tooth profile error (fα), lead crowning (fβ), pitch cumulative error (Fp), and radial runout (Fr).
Hardness & Case Depth
Digital Micro-Vickers & Rockwell Testers
Verifies surface hardness (58–62 HRC), core toughness, and effective carburized / nitrided case depth gradient.
Chemical Metallurgy
Direct-Reading Optical Spectrometer
100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).
Inspection Deliverables with Every Shipment
Complete Batch Traceability & Certified Test Reports
EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
Zeiss 3D CMM Full Dimensional Inspection Sheet
Klingelnberg Tooth Profile & Lead Crowning Graph Report
Effective Carburized Case Depth & Hardness Curve Data
We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.
ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards
Applications
Custom Gearbox Components operating environments.
Confirm load, speed, duty cycle, environment, lubrication, and assembly constraints before selecting the final material and manufacturing route.
Industrial speed reducers and motorized drive gearboxes
Agricultural and construction equipment transmission units
Mining, conveying, lifting, and heavy machinery drivetrains
Maintenance, overhaul, and replacement programs for documented gear units
Application Markets
Where Custom Gearbox Components Are Engineered & Deployed
Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:
High-torque, impact-resistant gears, girth rings, and planetary drive sets engineered for excavators, cranes, drilling rigs, and heavy mining crushers.
Common questions before ordering custom gearbox components products.
Critical specifications are confirmed against final drawings before production.
What information is required to quote custom gearbox components?▼
Provide component drawings or samples, gearbox ratio, center distances, mating gear data, shaft and bearing interface dimensions, material, heat treatment, quantity, operating torque, speeds, and lubrication.
Can ZhongYi manufacture replacement gears for an existing gearbox?▼
Yes, replacement components can be produced from drawings or samples. Supplying mating gears, bearing part numbers, housing center distance, and failure context helps ensure a reliable replacement.
Are matched gearbox gear sets kept together during production?▼
Yes, matched bevel sets, worm pairs, or specific gear trains can be identified and controlled as paired assemblies through manufacturing and packing when specified.
24-Hour Engineering Quote & DFM Review
Upload Your Drawings for Custom Gearbox Components Manufacturing
Send your 2D blueprints or 3D CAD models. Our senior gear engineering team will review tooth geometry, module/pitch, materials, heat treatment feasibility, and provide transparent factory pricing within 24 hours.
Supported CAD Blueprint & Drawing Formats:
STEP (.step / .stp) AutoCAD (.dwg / .dxf) IGES (.igs) SolidWorks / 3D CAD PDF Technical Blueprints Worn Physical Samples
Mutual NDA Protection
We sign strict Non-Disclosure Agreements to safeguard proprietary designs.
< 24h DFM Feedback
Rapid manufacturability review, tolerance checks, and unit quotation.
Direct Factory Engineering
Direct technical communication with senior master gear artisans.
