Custom Straight Bevel Gear Set manufacturing starts with confirmed technical requirements.
Review the gear pair, assembly conditions, drawing requirements, specification checks, and inspection points before requesting a quotation.
A straight bevel gear set changes power direction between intersecting shafts with straight tooth lines formed along the conical pitch surfaces. ZhongYi reviews matched straight bevel gears and pinions from buyer drawings, samples, and assembly data. Ratio, shaft angle, module or DP, pressure angle, tooth counts, pitch-cone geometry, face width, mounting distances, bore, keyway, hub, integral shaft features, material, heat treatment, backlash, lubrication, and contact requirements all influence manufacturing and assembly. For replacement work, the complete pair, housing center geometry, bearing arrangement, installed orientation, and original mounting data are more reliable than a single worn component. Spiral bevel gears are handled on their own category page because their curved teeth, hand, thrust behaviour, manufacturing route, and pair-control requirements differ from straight bevel gearing.
How to specify a custom straight bevel gear set for quotation.
Use application and mating-component data to confirm geometry, materials, mounting details, and the acceptance plan.
Confirm ratio, tooth counts, and shaft angle before defining the straight bevel pair. A 1:1 pair is commonly described as miter gearing, while different tooth counts produce a speed change. The drawing should identify module or DP, pressure angle, pitch-cone geometry, mounting distances, face width, bore and hub data, material, heat treatment, backlash, and contact acceptance. Operating torque, speed, duty cycle, lubrication, bearing rigidity, and housing alignment influence the appropriate manufacturing and inspection plan. For replacements, submit both members of the pair and document their installed orientation.
Technical specifications
Core technical parameters for engineering and procurement review.
Product type
Matched straight-tooth bevel gear and pinion pair by approved drawing
Shaft arrangement
Intersecting shafts with ratio and shaft angle confirmed by design
Pair data
Tooth counts, module or DP, pressure angle, cone geometry, mounting distance, backlash, and contact requirement
Mounting features
Finished bore, keyway, spline, hub, flange, or integral pinion shaft by drawing
Materials
Carbon steel, alloy steel, stainless steel, or specified engineering material
Order confirmation
Pair identification, orientation, quantity, inspection plan, and application conditions per RFQ
Factory Production Showcase
Custom Straight Bevel Gear Set Real Manufactured Samples & Variations
Authentic studio photography of custom manufactured parts, gear sets, and components produced to OEM customer specifications.
Custom straight bevel gear set with 1:1 speed ratio and ground bore

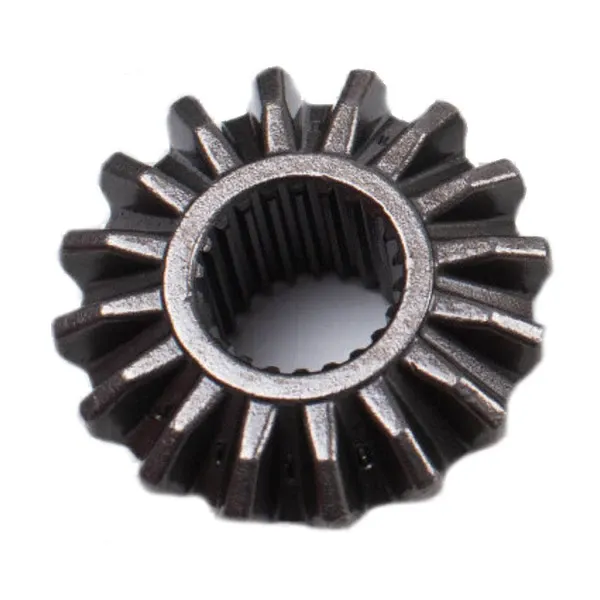

Case-hardened differential bevel side gear with internal spline
Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).
Component-Specific Quality Focus:
Bevel gear quality cannot be represented by dimensional checks on one component alone. Depending on the approved requirements, inspection may include blank and bore dimensions, runout, tooth thickness, pitch-related characteristics, hardness, mounting distance, backlash, and mating contact. The buyer should state how the pair will be assembled and which contact or inspection record is required. ZhongYi avoids assigning unsupported noise, torque, precision, or service-life claims without agreed design data and test conditions.
Coordinate Metrology
Zeiss / Hexagon 3D CMM
Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to ยฑ0.002 mm.
Tooth Geometry Analysis
Klingelnberg CNC Gear Analyzer
Inspects involute tooth profile error (fฮฑ), lead crowning (fฮฒ), pitch cumulative error (Fp), and radial runout (Fr).
Hardness & Case Depth
Digital Micro-Vickers & Rockwell Testers
Verifies surface hardness (58โ62 HRC), core toughness, and effective carburized / nitrided case depth gradient.
Chemical Metallurgy
Direct-Reading Optical Spectrometer
100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).
Inspection Deliverables with Every Shipment
Complete Batch Traceability & Certified Test Reports
EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
Zeiss 3D CMM Full Dimensional Inspection Sheet
Klingelnberg Tooth Profile & Lead Crowning Graph Report
Effective Carburized Case Depth & Hardness Curve Data
We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.
ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards
Applications
Custom Straight Bevel Gear Set operating environments.
Confirm load, speed, duty cycle, environment, lubrication, and assembly constraints before selecting the final material and manufacturing route.
Right-angle industrial drives and machinery gearboxes
Agricultural and construction equipment transmission systems
Power tools, steering mechanisms, and directional drive units
Replacement bevel pairs where housing and mounting data are available
Application Markets
Where Custom Straight Bevel Gear Set Are Engineered & Deployed
Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:
High-torque, impact-resistant gears, girth rings, and planetary drive sets engineered for excavators, cranes, drilling rigs, and heavy mining crushers.
Common questions before ordering custom straight bevel gear set products.
Critical specifications are confirmed against final drawings before production.
What should be included in a straight bevel gear set RFQ?โผ
Provide drawings for both members, tooth counts, ratio, shaft angle, module or DP, pressure angle, pitch-cone and mounting data, bores, keyways, material, heat treatment, backlash, contact requirement, quantity, and operating conditions.
Can one member of an existing bevel pair be replaced?โผ
Replacing only one worn member can create contact and noise problems because the pair wears and meshes together. Submit both gears and the housing geometry for review; a matched replacement pair is generally the safer engineering path.
How are bevel gear contact and backlash confirmed?โผ
The method depends on the drawing and inspection plan. Mounting distance, bearing support, housing alignment, and assembly adjustment affect the final result, so required mating or contact checks must be agreed before production.
24-Hour Engineering Quote & DFM Review
Upload Your Drawings for Custom Straight Bevel Gear Set Manufacturing
Send your 2D blueprints or 3D CAD models. Our senior gear engineering team will review tooth geometry, module/pitch, materials, heat treatment feasibility, and provide transparent factory pricing within 24 hours.
Supported CAD Blueprint & Drawing Formats:
STEP (.step / .stp) AutoCAD (.dwg / .dxf) IGES (.igs) SolidWorks / 3D CAD PDF Technical Blueprints Worn Physical Samples
Mutual NDA Protection
We sign strict Non-Disclosure Agreements to safeguard proprietary designs.
< 24h DFM Feedback
Rapid manufacturability review, tolerance checks, and unit quotation.
Direct Factory Engineering
Direct technical communication with senior master gear artisans.
